Product Highlights
Description

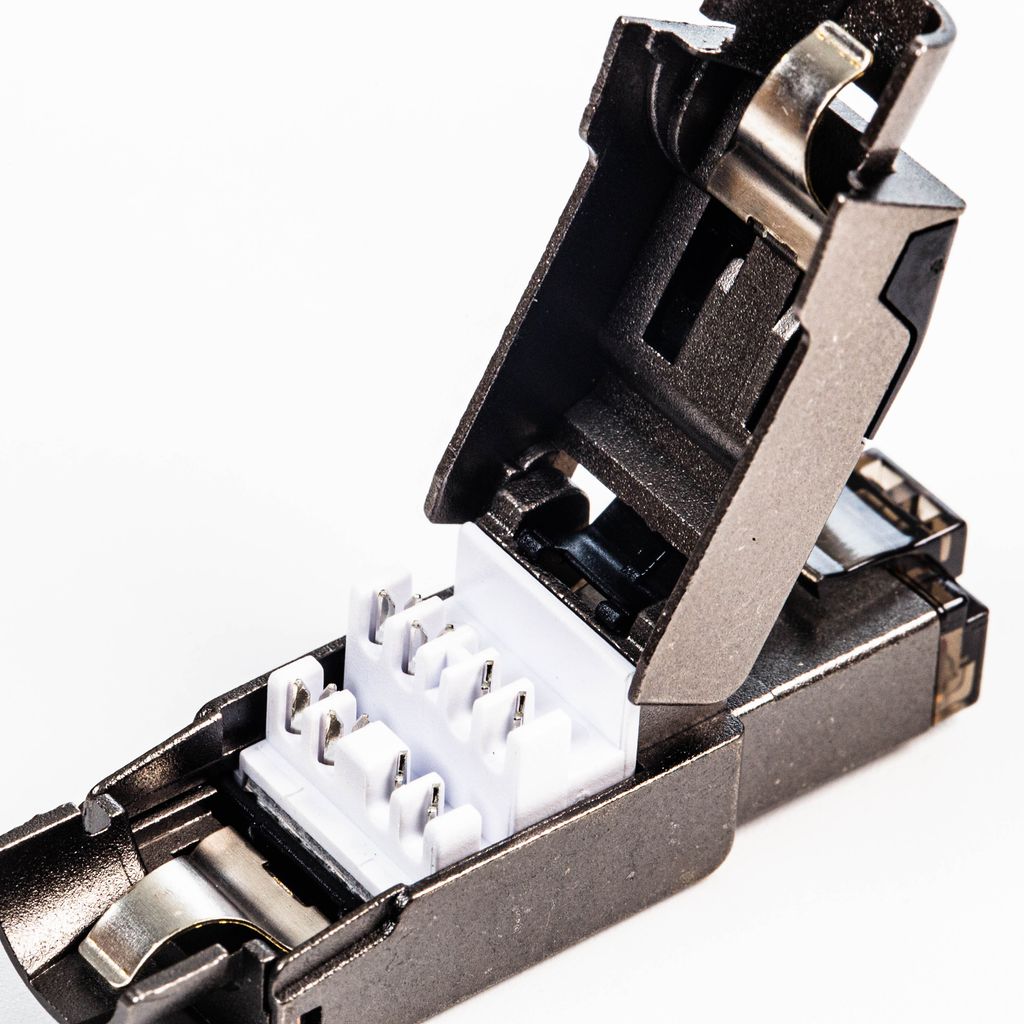

- Superior one-piece die-cast fast field installation RJ45 plug protect data transmission from crosstalk
- With wire load bar, RJ45 plug installation becomes easier and faster
- Suitable for 22 to 24 AWG (Cat.8) / 23 to 26 AWG (Cat.6A) solid or stranded STP cables
- Screw-on metal strain relief boot protect the cable from over-bending and increase EMI shielding performance
- Compatible with PoE Type III 60W and Type IV 100W applications
Technical Details
- Extractor: PC, UL 94V-2
- Housing: Zinc die-casting with nickel plated
- RJ45 plug housing: PC, UL 94V-2
- RJ45 plug contact material: Phosphor bronze with 100 micron-inch nickel plated
- Contact finish: 50 micron-inch gold plated on plug contact area
- Cover: Zinc die-casting with nickel plated
- Wire management bar: PC, UL 94V-2
- IDC housing: PC and Glass Fiber, UL 94V-2
- IDC terminal: titanium copper with tin plated
- Grounding contact: Zinc die-casting with nickel plated
- Boot housing: Zinc die-casting with nickel plated
- Strain Relief Boot: Zinc die-casting with nickel plated and PC, UL 94V-2
- PCB: UL 94V-0
- Dust cap: PE, black color
