Product Highlights
Description

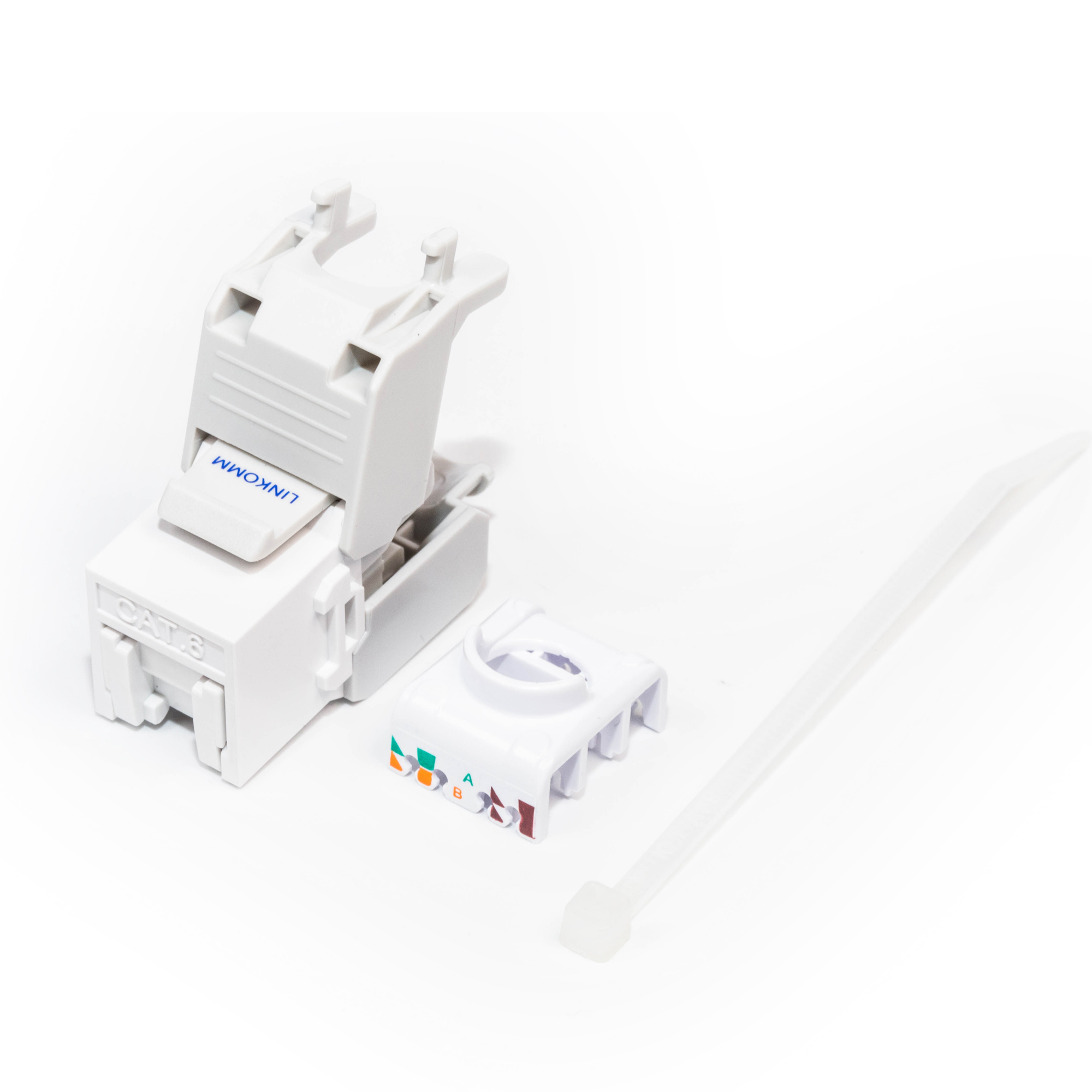

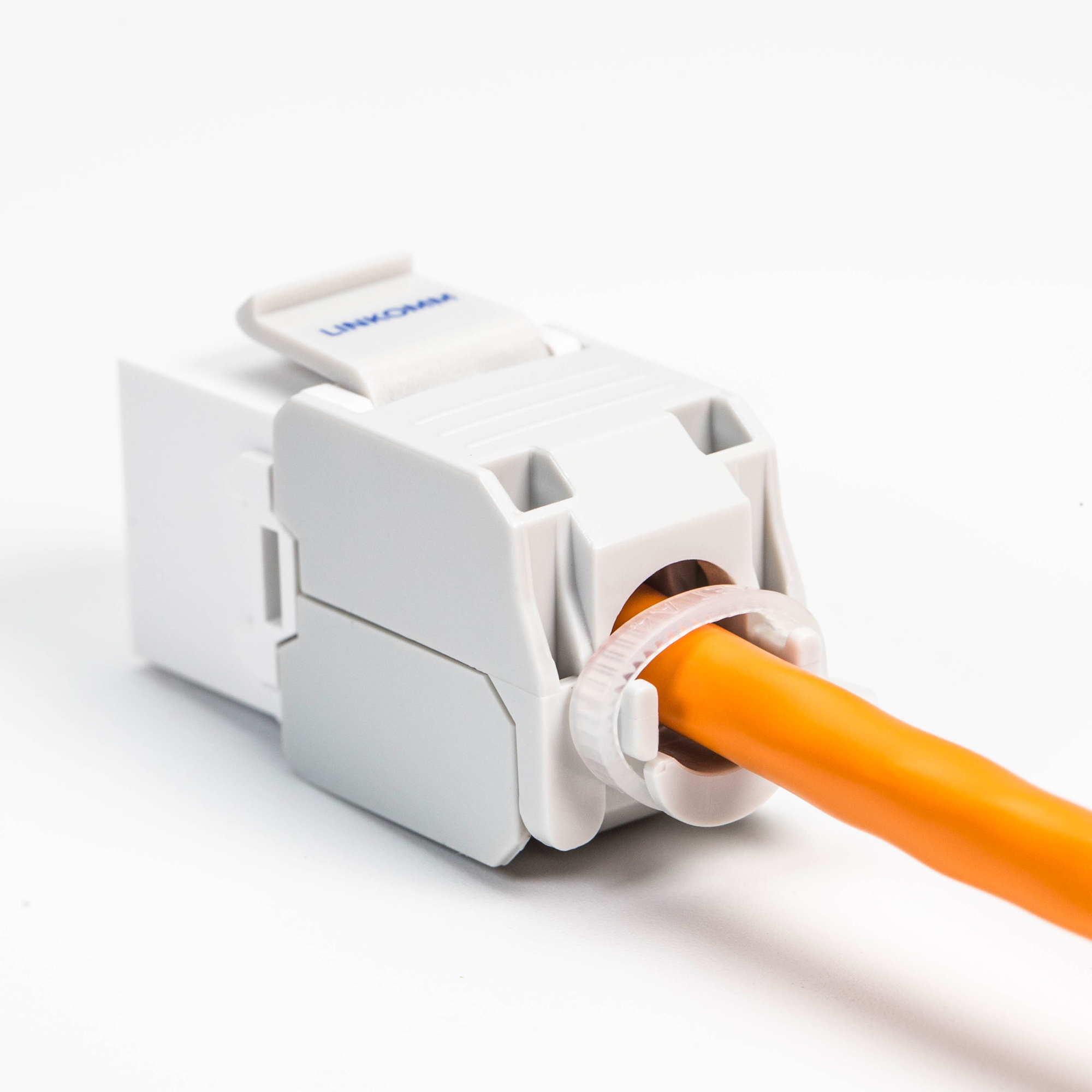

- RJ45 Cat.6/Cat6A Tool-Free UTP Unshielded Keystone Jack with Shutter Dust Cover
- Easy to snap-in Cat.6/Cat. 6A RJ45 keystone jack with no punch-down tool needed
- Snap into standard wall plates, patch panels and surface-mount boxes with a keystone blank outlet
- Cat. 6 network jack supports 1GBASE-T network systems, surveillance cameras, VoIP phone systems, wireless access points and other PoE devices; PoE (Power over Ethernet) jack prevents spark-gap erosion that degrades data and power transmission
- Cat. 6A network jack supports 10 GBASE-T network systems, surveillance cameras, VoIP phone systems, wireless access points and other PoE devices; PoE (Power over Ethernet) jack prevents spark-gap erosion that degrades data and power transmission
- Wire IDC suitable for 23 to 26AWG solid and stranded network wires; nickel-plate plug contacts with 50u” gold-plated for a reliable, fast low-loss network data transmission
- Shutter and dust cap protects the jack from dust and other contaminants when not in use
Technical Details
- Jack Housing: ABS+PC UL 94V-0
- Jack Contact Bracket: PBT and Glass Fiber, UL 94V-0
- Jack Contact Material: Phosphor Bronze with Nickel Plated
- Jack Contact Finish: 50 micro-inch Gold plated on Plug contact
- IDC Housing: PC UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin Plated
- PCB: FR4, UL 94V-00
