Product Highlights
Description

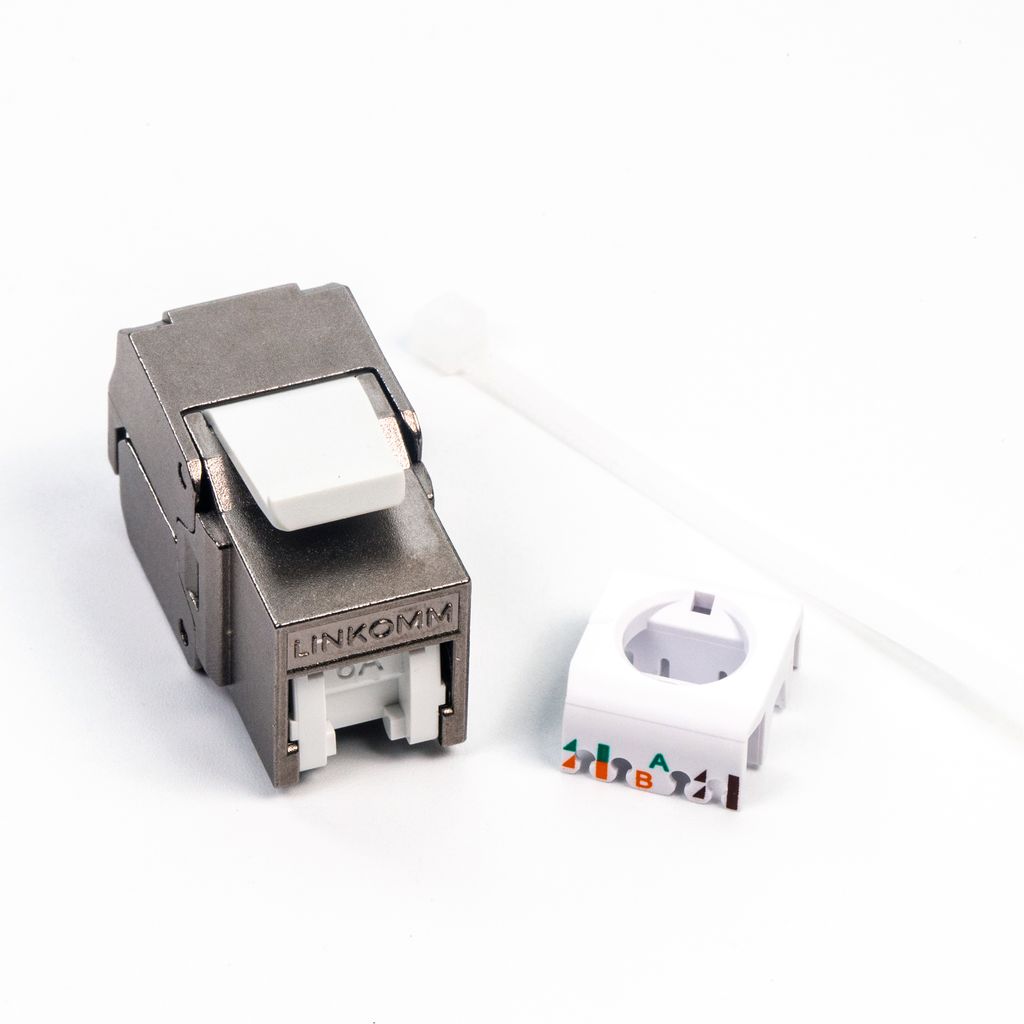

- RJ45 Cat.6A 90° STP Metal Tool-free Shielded Keystone Jack with Shutter Dust Cover
- Easy to snap-in Cat. 6A RJ45 keystone jack with no punch-down tool needed
- Shutter and dust cap protects the jack from dust and other contaminants when not in use
- Ideal keystone jacks for patch panels, surface mount boxes or wall plates face plates with standard keystone ports
- Zinc metal die-casting housing efficiently protect data transmissions from potential crosstalk
- Suitable for 23 to 26 AWG solid or stranded cable wires,
- Compatible with PoE Type III 60W and Type IV 100W
- Wire IDC suitable for 23 to 26AWG solid and stranded network wires; nickel-plate plug contacts with 50u” gold-plated for a reliable, fast low-loss network data transmission
Technical Details
- Housing: Zinc Die-Casting with nickel plated
- Contact Bracket: PC, UL 94V-2 8Pin
- Jack Contact: Phosphor bronze with nickel plated
- Contact Finished: 50 micron-inch gold plated on plug contact area
- IDC Housing: PC, UL 94-V2 IDC
- IDC Terminal: Phosphor bronze with tin plated
- CAP: PC, UL 94-V2
- PCB: FR4, UL94V-0
