Product Highlights
Description

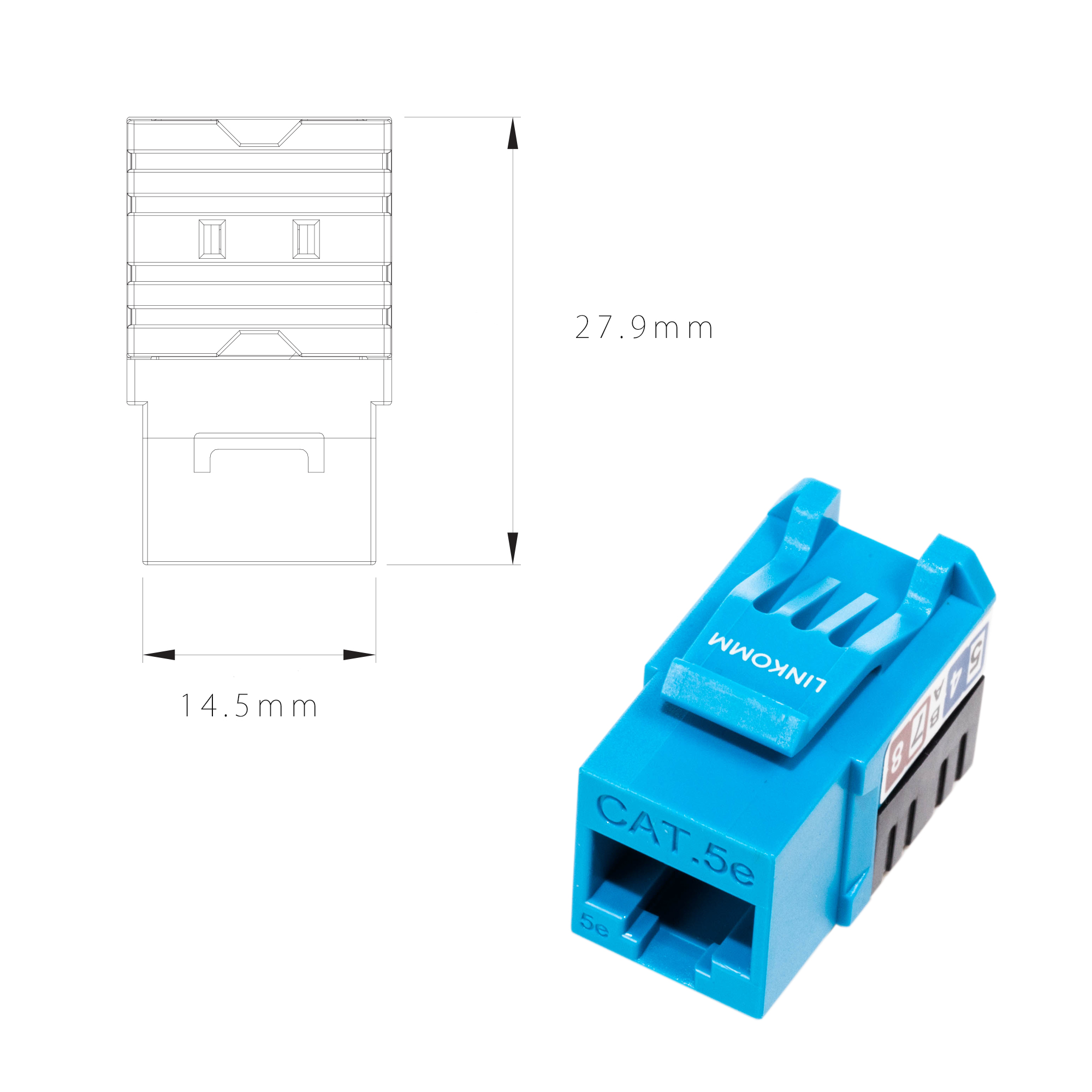

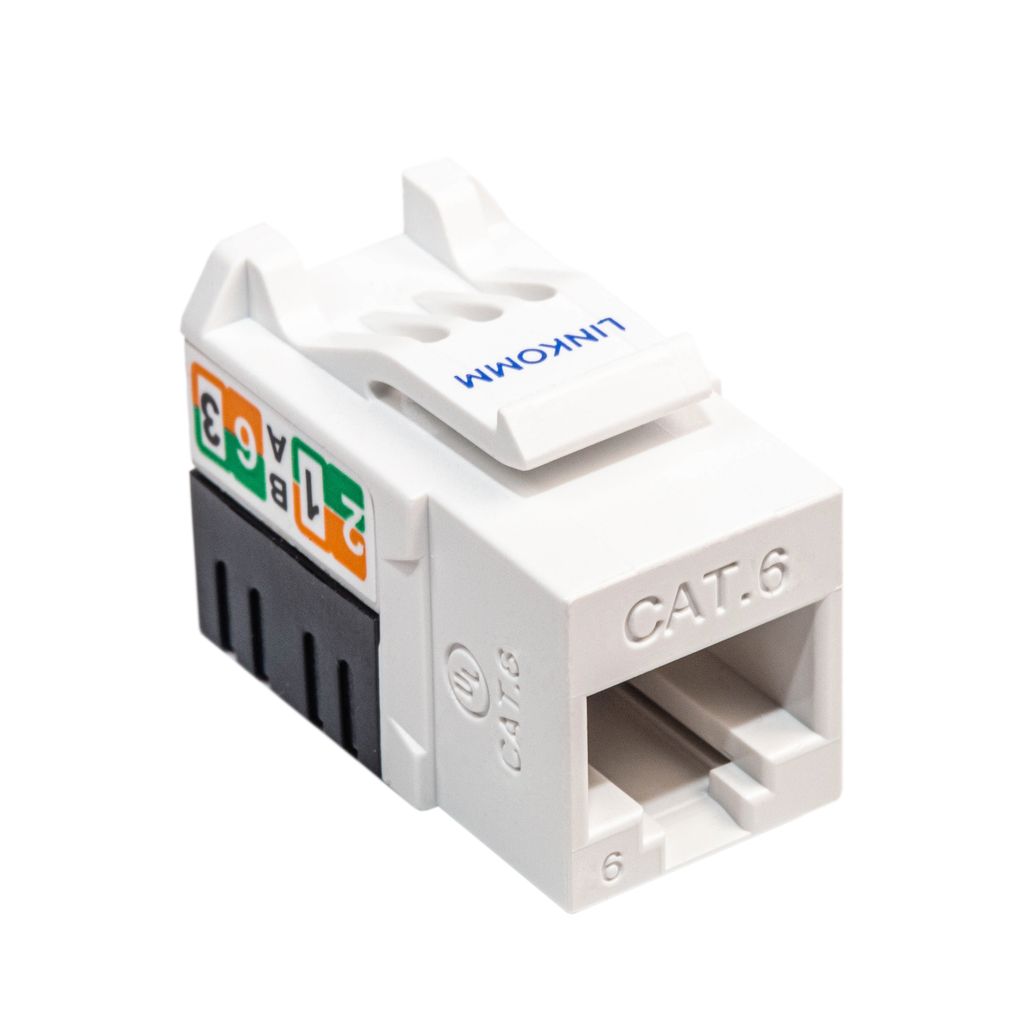

- RJ45 Cat.5e-Cat.6A 90° Slim Profile UTP Unshielded Keystone Jack
- 90-degree punch-down installation snap-in Cat.5e/Cat.6/Cat.6A RJ45 keystone jack
- Small size best for 3-port and 6-port high-density wall plates and patch panels
- Wire IDC suitable for 23 to 26AWG solid and stranded wires
- Nickel-plate plug contacts with 50u” gold-plated for low-loss data transmission Pointed wire IDC for fast and easy separating color-coded wires installation
Technical Details
- Jack Housing: ABS+PC UL 94V-0
- Jack Contact Bracket: PBT and Glass Fiber, UL 94V-0
- Jack Contact Material: Phosphor Bronze with Nickel Plated
- Jack Contact Finish: 50 micro-inch Gold plated on Plug contact
- IDC Housing: PC UL 94V-2
- IDC Terminal: Phosphor Bronze with Tin Plated
- PCB: FR4, UL 94V-0
