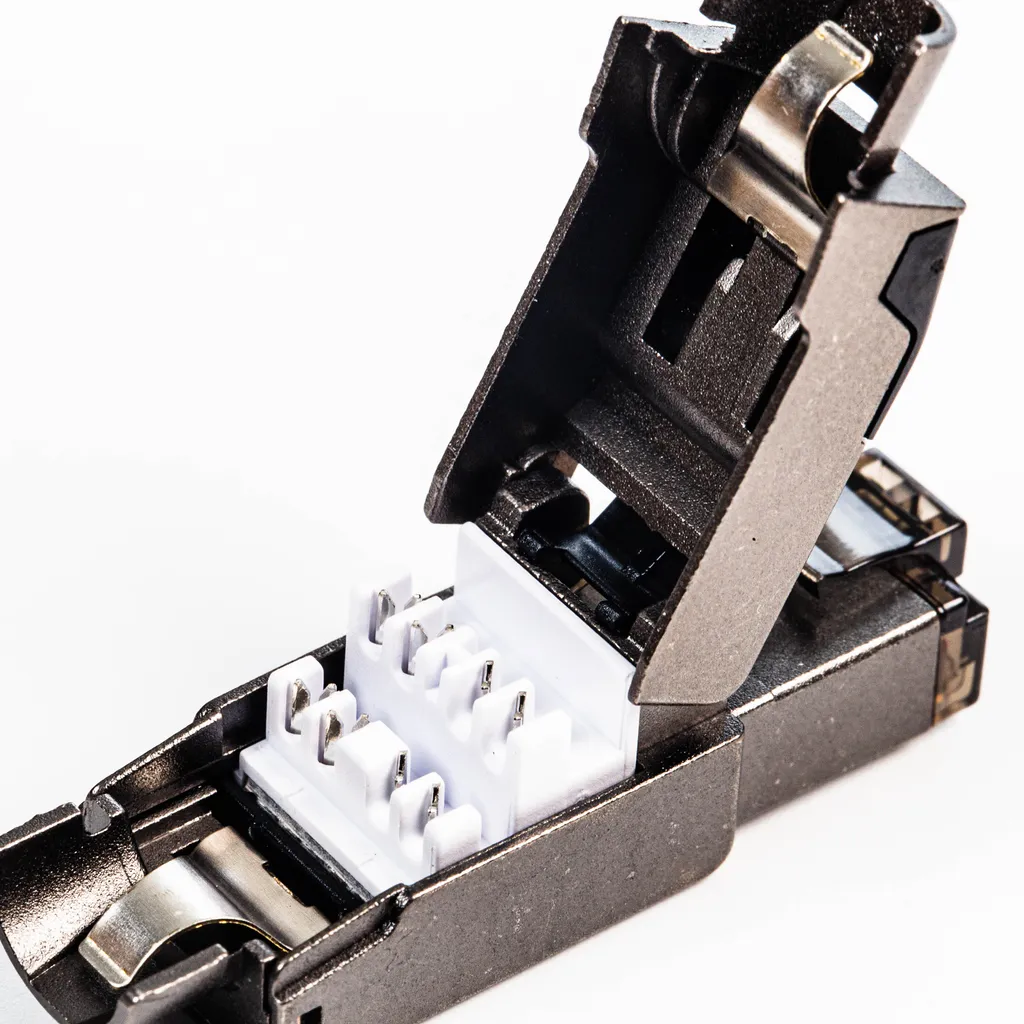

RJ45 Cat.6A-Cat.8 Tool-Free STP Modular Plug / Termination Plug Connector

Product Highlights

Description

• Superior one-piece die-cast fast field installation RJ45 plug protect data transmission from crosstalk
• With wire load bar, RJ45 plug installation becomes easier and faster
• Suitable for 22 to 24 AWG (Cat.8) / 23 to 26 AWG (Cat.6A) solid or stranded STP cables
• Screw-on metal strain relief boot protect the cable from over-bending and increase EMI shielding performance
• Compatible with PoE Type III 60W and Type IV 100W applications

Technical Details

• Extractor:　PC, UL 94V-2
• Housing:　Zinc die-casting with nickel plated
• RJ45 plug housing:　PC, UL 94V-2
• RJ45 plug contact material:　Phosphor bronze with 100 micron-inch nickel plated
• Contact finish:　50 micron-inch gold plated on plug contact area
• Cover:　Zinc die-casting with nickel plated
• Wire management bar:　PC, UL 94V-2
• IDC housing:　PC and Glass Fiber, UL 94V-2
• IDC terminal:　titanium copper with tin plated
• Grounding contact:　Zinc die-casting with nickel plated
• Boot housing:　Zinc die-casting with nickel plated
• Strain Relief Boot:　Zinc die-casting with nickel plated and PC, UL 94V-2
• PCB:　UL 94V-0
• Dust cap:　PE, black color
